6x5.5 / 6x139.7 to 5x120 US 2 pc Wheel Adapters 12x1.5 studs 2" thick 108bore x2

6x5.5 / 6x139.7 to 5x120 US 2 pc Wheel Adapters 12x1.5 studs 2" thick 108bore x2

$ 159.09

6x5.5 / 6x139.7 to 5x120 US 2 pc Wheel Adapters 12x1.5 studs 2" thick 108bore x2

6x5.5 / 6x139.7 to 5x120 US 2 pc Wheel Adapters 12x1.5 studs 2" thick 108mm bore x 2

 US Made Two Piece Billet Wheel Adapters

Part #  =  USA-6550-5120E7-108

Vehicle Bolt Pattern = 6x5.5 / 6x139.7

Wheel Bolt Pattern  = 5x120

Adapter Center Bore  =  108mm for 1" deep only

Adapter Lug Seat = Conical (do not use factory bolts with Radius seat)

Adapter Studs  =  12x1.5

Open Ended Lug Nuts Included same size as Adapter Studs

Thickness  =  2"

Quantity = 2

(The 5 lug pattern in the top plate is too small for 108mm center hole so the hub from the vehicle can not protrude more than 1" from the vehicle hub.)

Need Help?

If you have any questions, please message us and get the answers before your purchase.

It is your responsibility to ensure that the written description which includes the bolt pattern of the vehicle, bolt pattern of the wheel, center bore and stud / lug nut size are all correct for your application.

If you are not sure about anything please ask.

We are available with professional advice.

8-4 PST Mon - Thur 8-3 Fri

USAdapters

Installation

Installation is of critical importance with wheel adapters.

Professional installation is strongly recommended.

Slip fit the adapter on the wheel and the vehicle before you bolt anything on to ensure that you have proper fitment.

Installed adapters are not returnable.

Mating surfaces must be clean and free of rust and obstructions allowing for the adapter to sit flat on the rotor, and the wheel flat on the face of the adapter.

Make Sure the lug nuts or studs from the vehicle do not touch the back of the wheel.

Torque by hand, do not use impact gun for installation.

Improper Installation Voids All Warranties.

Installing Two-Piece Adapters

I addition to all other instructions, with a two piece adapter Make Sure the hub, studs or lug nuts from the vehicle do not contact the second piece of the adapter or it will cause failure.
Open ended 3/4" hex conical seat lug nuts, short enough to not touch the second piece of the adapter are required to fit the vehicle. (Not included)

The black bolts that hold the two pieces together should be torqued to 60 to 65 foot-pounds and I also recommend using blue removable Loctite on these bolts.
Do Not Use Impact Gun to tighten adapter bolts/lugs, torque by hand.

Bolt Patterns

The bolt pattern of the vehicle comes first in the listing and the wheel bolt pattern is listed after the word "to".

3, 5 and 7 lug bolt patterns measure differently than 4, 6, or 8 lug

Vehicle Studs

If the studs on your vehicle are longer than the adapter is thick, you may need to trim them down so they do not touch the back of the wheel.

Factory lug nuts are often too big to recess in an adapter so they may need to be replaced.

Studs / Lug Nuts

These wheel adapters require a conical seat lug nut or bolt.

One set of open ended conical seat bulge lug nuts are included with the adapters in the same size as the studs in the adapter unless otherwise requested or advertised above.

Different wheels require different kinds of lug nuts, make sure you get the proper lug nuts for your wheels in the right size to fit the studs in the adapter.

Center Bore

The center hole of the adapter must be large enough to fit over the hub of the vehicle. It can be larger, which is called lug centric, where the conical seat lug nuts center the adapter on the hub.

Hubcentric

Hubcentric refers to an adapter where the center hole of the adapter perfectly fits over the hub sticking out on the vehicle.

Wheel-centric

Wheel centric is available for extra cost in most applications for the person that wants the best and closest to factory fit that you can get, or you want extra strength, then wheel centric is optional.

If you have wheels that require a radius seat lug nut, it is strongly recommended.

Pictures

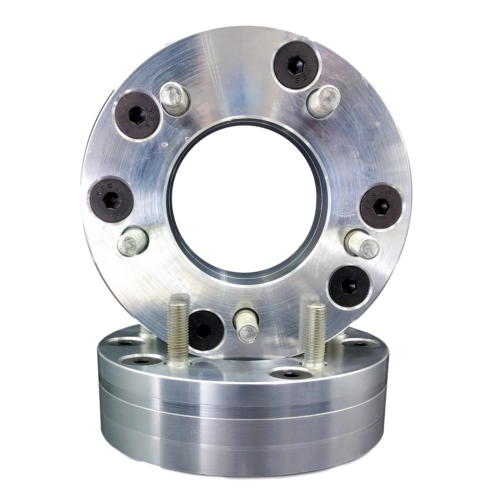

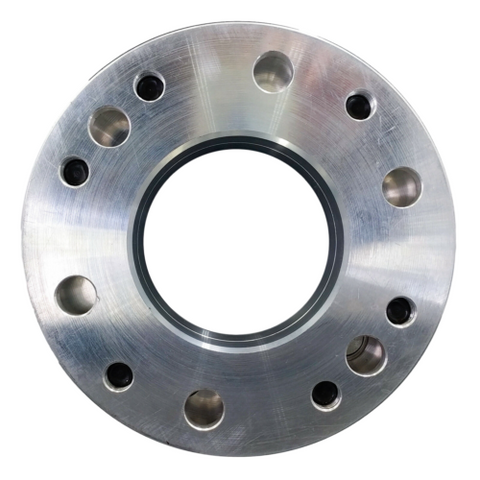

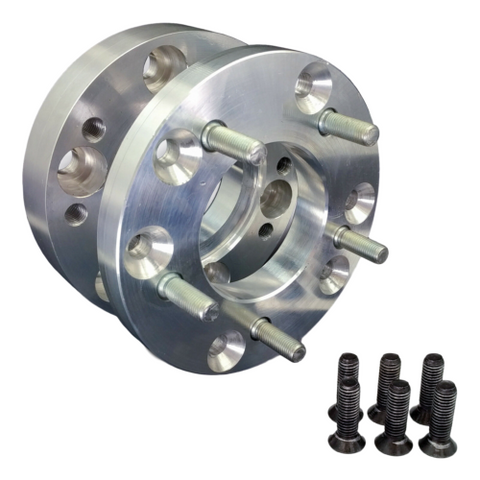

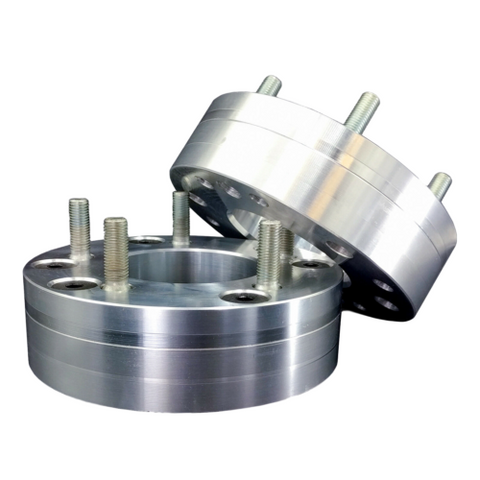

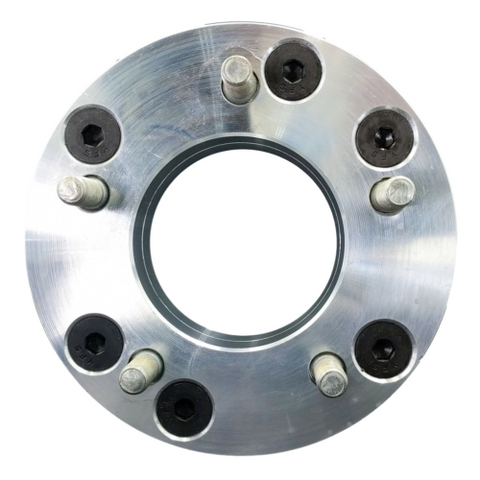

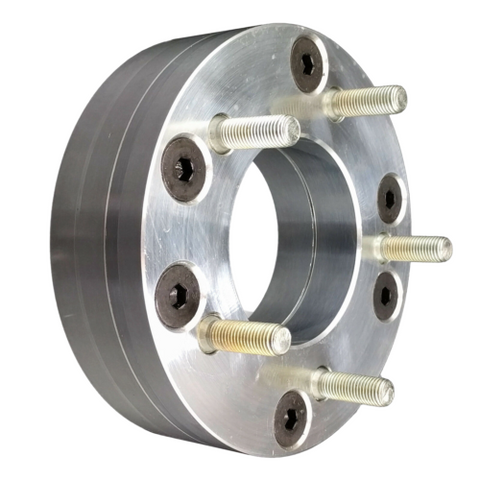

The pictures are of stock adapters and may not look exactly like what you get due to differences in bolt patterns and center bore sizes.

You will receive the item as described in the written description of the listing.

Prices

Our prices are higher than many other sellers because they are usually cheap, inferior wheel adapters made in China.

We are a US manufacturer based in San Bernardino California where we use US sourced billet aluminum providing the best materials for construction of our wheel adapters.

The US sourced aluminum that we use for construction is superior and more costly than that from China and it costs more for labor in the US which is why our wheel adapters cost more.

Authenticity

Beware of unscrupulous sellers of wheel adapters (there are many) who would imply or even straight up lie by saying that their adapters are US-made, but they're Chinese imports, these are truly US-made wheel adapters made by US citizens from US sourced aluminum in our machine shop in San Bernardino California

Warranty

Improper Installation or alteration Voids All Warranties.
If you have a problem with your purchase please contact us so we can help you resolve the issue.
We do Not guarantee that the part you buy will fit your car, if you ask us specifically and give us correct information we can help you get the right part.
We guarantee our parts are as described in the written part of the listing, please read carefully and ask any questions you have before purchase.

We offer a limited lifetime warranty on our US-made wheel adapters.

This warranty covers the aluminum construction of the adapter, if it should ever fail we will replace the defective part.

This warranty is limited to part replacement only, user agrees to assume all other responsibility and or liability arising from use of this product.

Wheel studs are a wear part, and are replaceable in the adapter, there are many ways to damage them that have nothing to do with construction so wheel studs are not covered under this warranty, if you need stud replacements we have them available for sale online.

NO Refunds - Exchange Only Buyer pays shipping both ways.

NO Returns after 30 days

Adapters that have been bolted to the vehicle are not returnable, only parts in brand-new condition are accepted for refund or exchange.

Adapters that are improperly packed for the return and therefore arrive damaged will not be accepted for refund or exchange, please be sure to package them well and put something between the adapters when shipping.
